Structural · S-D8J95

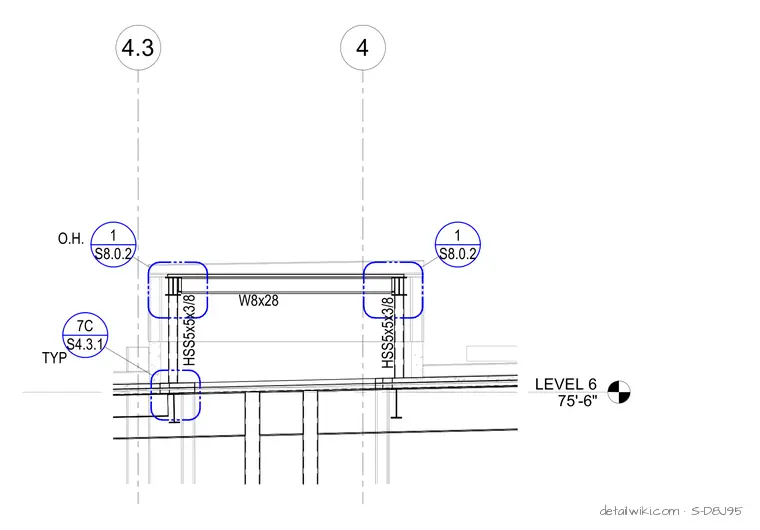

Ordinary Moment Frame Elevation

Scale: SCALE: 1/4" = 1'-0"
Units: imperial
Discipline: Structural

Materials

Steel

Elements

Beams Columns

Connections

Beam-to-Column Moment Connection

Text on the drawing

4 LEVEL 6 75'-6" 4.3 S8.0.2 1 O.H. S8.0.2 1 HSS5x5x3/8 HSS5x5x3/8 W8x28 S4.3.1 7C TYP

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
