This connection assembly features a shear transfer plate measuring 1/2 inch by 6 feet 5 inches as reinforcement at each end of the plate with L2x2 angles similar to L3x3x5/16 by 6 feet 5 inches top and bottom. Three-quarter-inch diameter machine bolts serve as erection bolts spaced at 48 inches on center typically with a 1/2-inch clear space typically. Fillet welds of 5/16-inch size with 4-12 spacing join the elements. The braced frame beam utilizes structural steel framing with associated detail and callout references.

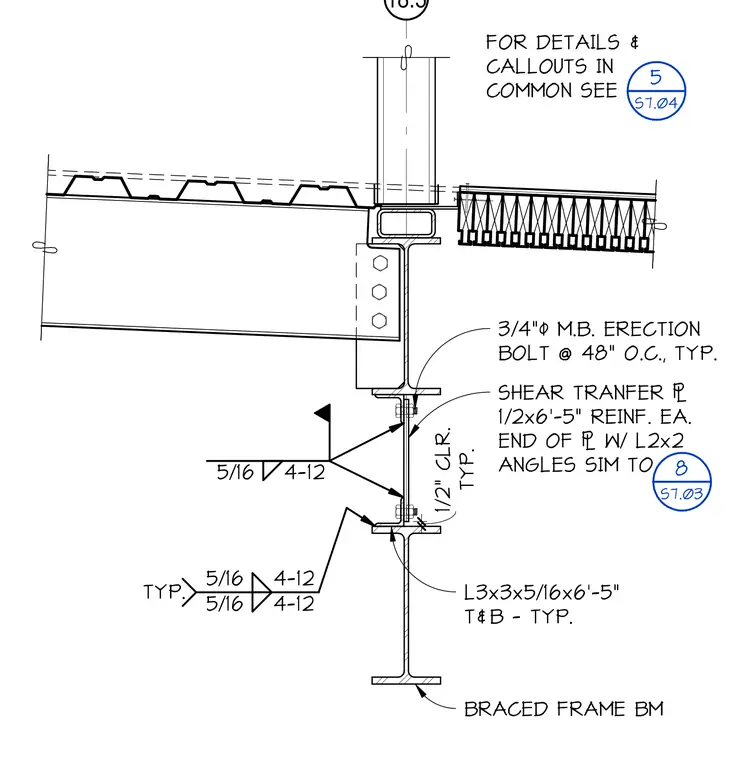

18.5 SHEAR TRANFER & 1/2x6'-5" REINF. EA. END OF & W/ L2x2 ANGLES SIM TO L3x3x5/16x6'-5" T&B - TYP. BRACED FRAME BM 5/16 4-12 5/16 4-12 5/16 4-12 TYP. 8 S7.03 FOR DETAILS & CALLOUTS IN COMMON SEE 5 S7.04 TYP. 1/2" CLR. 3/4"$ M.B. ERECTION BOLT @ 48" O.C., TYP.
