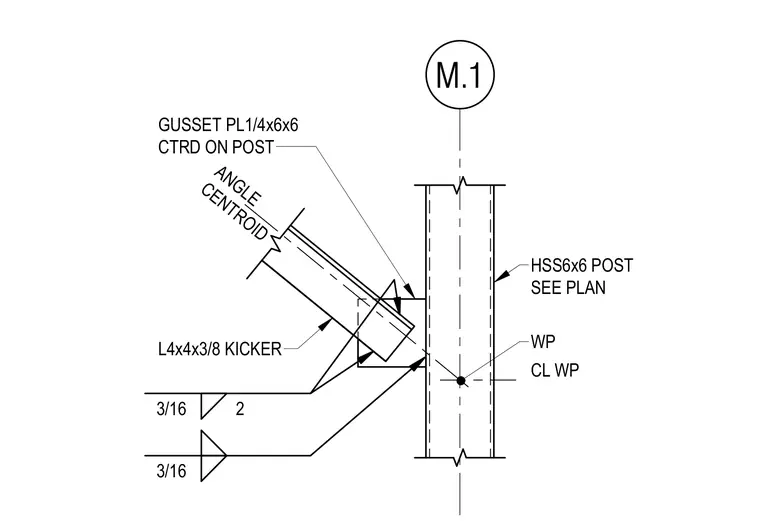

An L4x4x3/8 angle kicker connects to an HSS6x6 structural post via a 1/4" by 6" by 6" gusset plate centered on the post. The gusset plate and angle are secured with 3/16" fillet welds. The working point aligns with the centerlines of the intersecting members.
M.1 CL WP WP HSS6x6 POST SEE PLAN GUSSET PL1/4x6x6 CTRD ON POST L4x4x3/8 KICKER 3/16 2 3/16 ANGLE CENTROID
