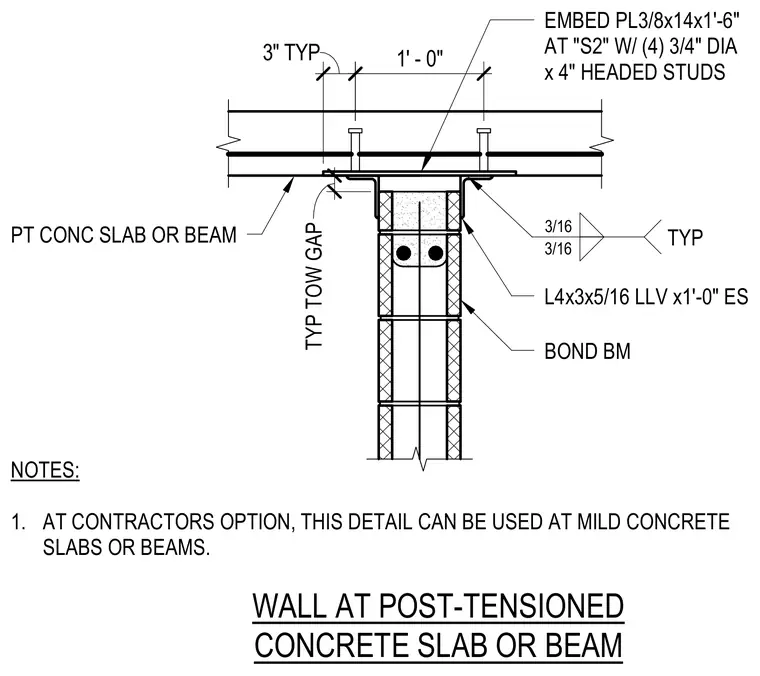

An embed plate measuring three-eighths by fourteen inches by one foot six inches is cast into the underside of a post-tensioned concrete slab or beam, secured with four three-quarter-inch diameter by four-inch headed studs. The wall top features a bond beam connected via L4x3x5/16 angles welded with typical three-sixteenth-inch fillet welds on each side. A typical top-of-wall gap is maintained below the slab underside. Per drawing notes, this connection assembly may alternatively be used at mild concrete slabs or beams at the contractor's option.
L4x3x5/16 LLV x1'-0" ES BOND BM EMBED PL3/8x14x1'-6" AT "S2" W/ (4) 3/4" DIA x 4" HEADED STUDS WALL AT POST-TENSIONED CONCRETE SLAB OR BEAM 3" TYP TYP 3/16 3/16 1 1/2" PT CONC SLAB OR BEAM TYP TOW GAP NOTES: 1. AT CONTRACTORS OPTION, THIS DETAIL CAN BE USED AT MILD CONCRETE SLABS OR BEAMS. 1' - 0"
