Structural · S-D7PEN

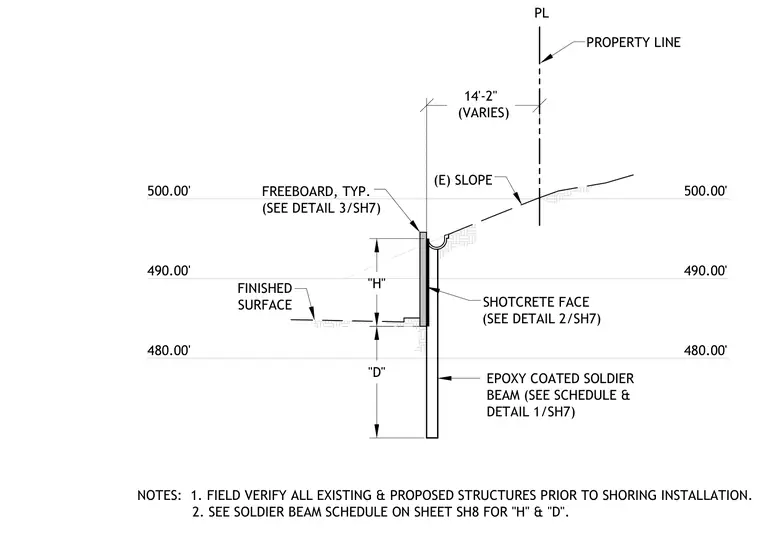

Permanent Soldier Beam Cross Section

Elements

About this detail

An epoxy-coated soldier beam is installed vertically with dimensions "H" and "D" per the structural schedule, extending below the finished surface grade. A shotcrete face is applied against the excavation face with freeboard at the top. The assembly is located at a variable distance from the property line adjacent to an existing slope, with elevations indicated at 480.00 feet, 490.00 feet, and 500.00 feet.
