Continuity plates and stiffener plates are welded to a wide-flange steel member. The continuity plate thickness is sized to the beam flange thickness plus one-eighth inch minimum. Fillet welds of five-eighths times the continuity plate thickness attach the plates on three sides. Stiffener plate sizes are specified for continuity plates, main plates, and the web-to-flange z-region.

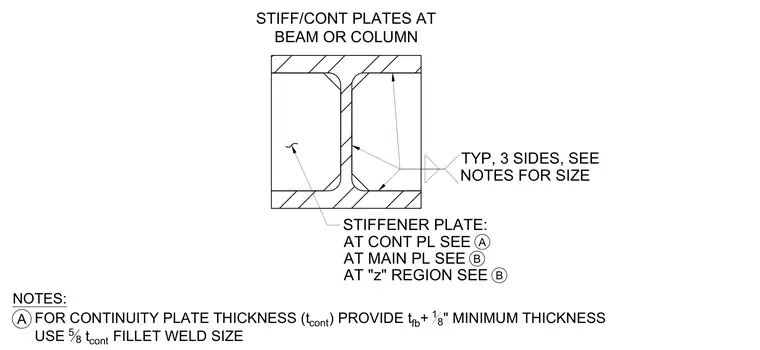

FOR CONTINUITY PLATE THICKNESS (t cont ) PROVIDE t fb + 1 8 " MINIMUM THICKNESS TYP, 3 SIDES, SEE STIFFENER PLATE: A AT CONT PL SEE AT MAIN PL SEE AT "z" REGION SEE A B B NOTES FOR SIZE NOTES: USE 5 8 t cont FILLET WELD SIZE STIFF/CONT PLATES AT BEAM OR COLUMN
