Structural · S-D7EGV

Stiffener Plate at Square Hollow Structural Section with Concrete Planter and Slab Edge

Materials

Concrete Steel Timber / Wood Masonry / CMU Glass / Glazing

Elements

Beams Floors / Slabs Arches Bracing Site / Paving Anchors / Embeds Connections / Plates Reinforcing

Connections

Bracing Connection Shear Stud / Composite Rebar Splice / Development Embed Plate

About this detail

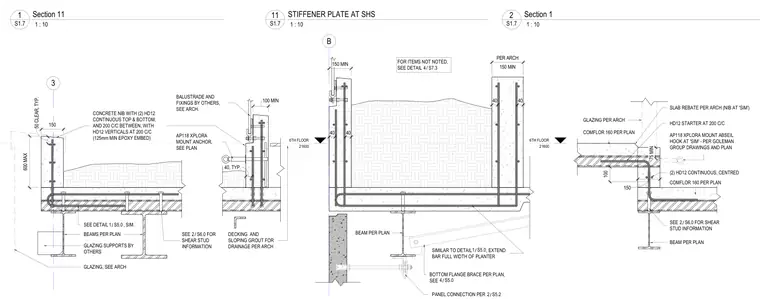

A composite slab edge with Comflor 160 decking is supported by structural steel beams per plan. A reinforced concrete planter nib features two continuous HD12 top and bottom bars with HD12 vertical bars at 200 millimeters center-to-center and a 125 millimeter minimum epoxy embedment. An AP118 Xplora mount anchor and abseil hook are integrated at the anchor locations per the plan and manufacturer specifications. Glazing supports, balustrades, and panel connections are provided by others per architectural drawings. Sloping grout is detailed over the decking for drainage, and a bottom flange brace connects to the structural framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
