A six-inch steel schedule forty pipe extends three feet above finish grade and is filled with three thousand psi concrete, capped with a six-inch steel bollard dome cap. The pipe anchors into a reinforced concrete pole footing below grade.

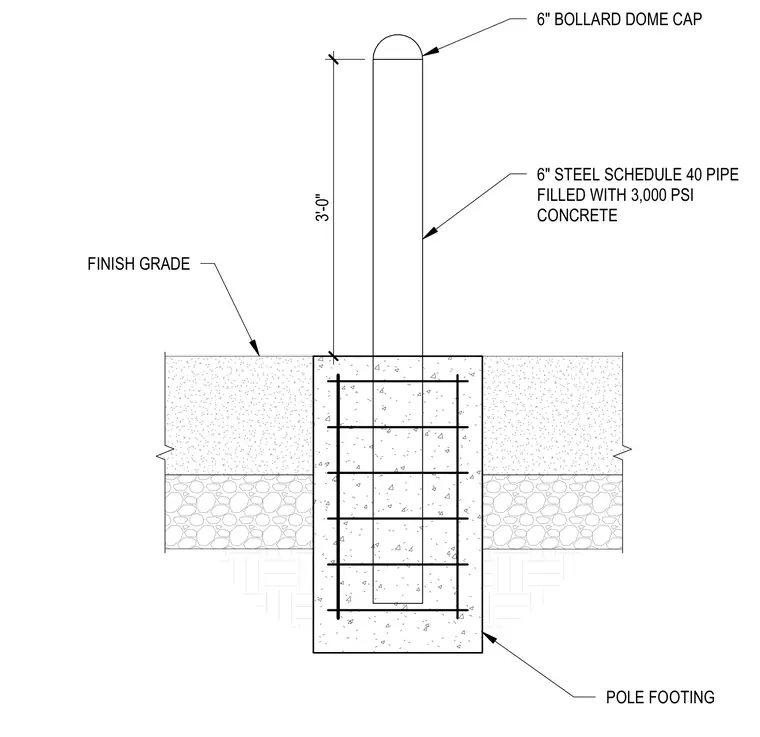

POLE FOOTING FINISH GRADE 3'-0" 6" STEEL SCHEDULE 40 PIPE FILLED WITH 3,000 PSI CONCRETE 6" BOLLARD DOME CAP
