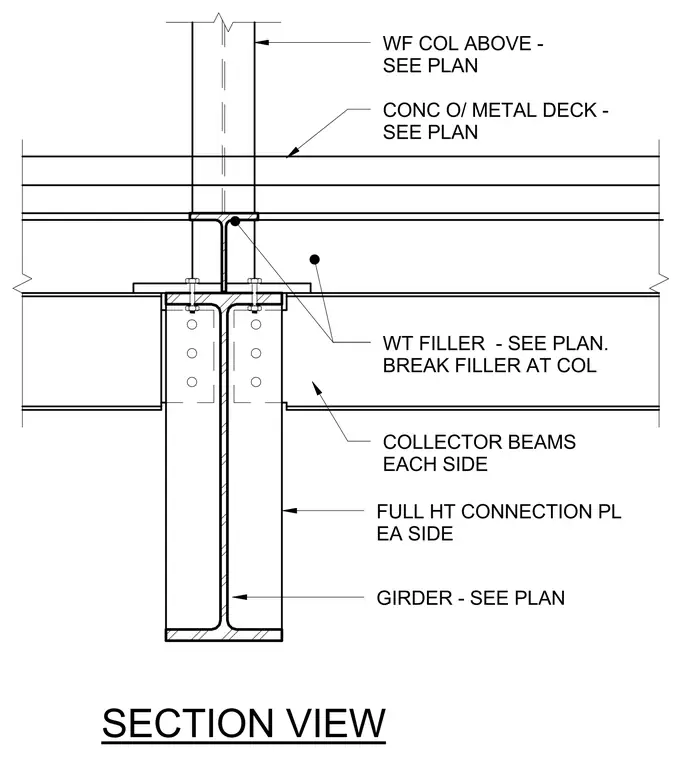

A full height connection plate assembly occurs at a wide flange column and girder intersection. A wide flange column above bears upon a concrete over metal deck floor assembly sized per plan. A wide flange tee filler, sized per plan and broken at the column, sits between the framing members. Collector beams frame into each side of the girder with full height connection plates on each side of the girder web. The wide flange girder is sized per plan.
CONC O/ METAL DECK - SEE PLAN WF COL ABOVE - SEE PLAN WT FILLER - SEE PLAN. BREAK FILLER AT COL FULL HT CONNECTION PL EA SIDE COLLECTOR BEAMS EACH SIDE GIRDER - SEE PLAN SECTION VIEW
