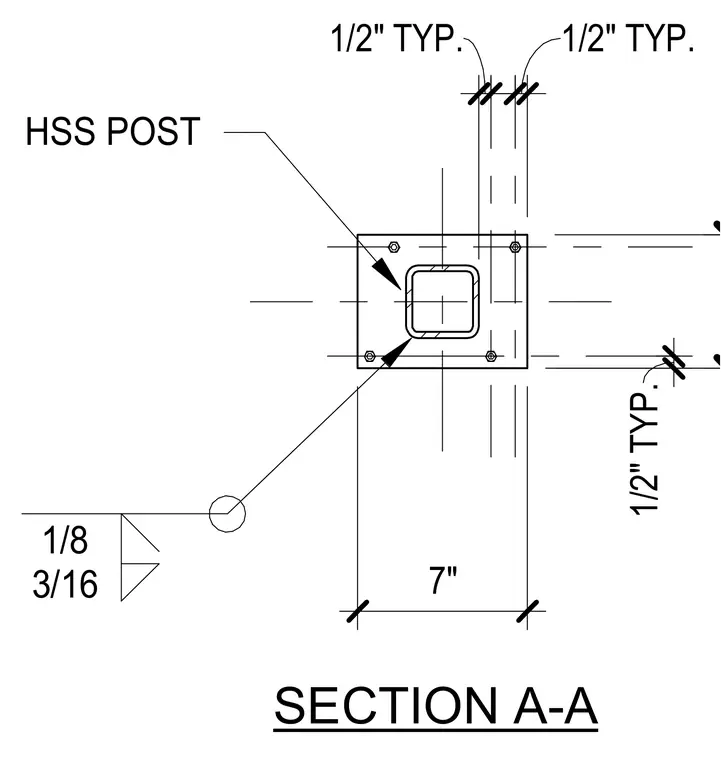

A hollow structural section post is centered on a rectangular base plate with seven-inch dimensions indicated. Fillet welds join the structural steel post to the base plate with sizes specified at one-eighth and three-sixteenth inches. Half-inch typical clearances are dimensioned around the assembly.
1/2" TYP. 1/2" TYP. HSS POST 1/2" TYP. 7" 1/8 3/16 SECTION A-A
