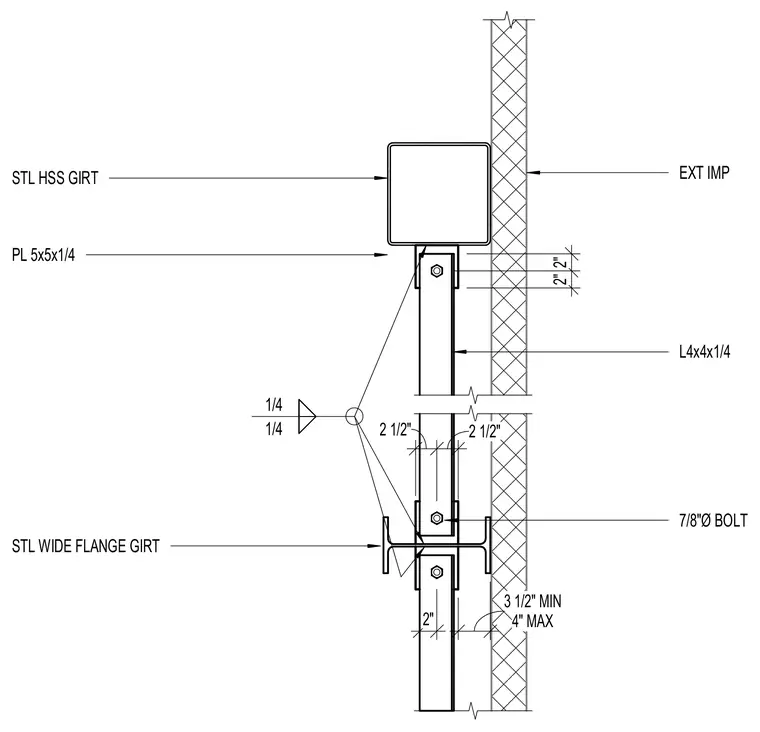

A steel hollow structural section girt connects to a steel wide flange girt using four-inch by four-inch by one-quarter-inch angles and seven-eighth-inch diameter bolts. A five-inch by five-inch by one-quarter-inch plate attaches to the bottom of the hollow structural section girt. One-quarter-inch fillet welds secure the connection assembly. Exterior insulated metal panels align with the exterior face of the framing.
2 1/2" 2 1/2" 4" MAX 3 1/2" MIN 7/8"Ø BOLT L4x4x1/4 EXT IMP STL HSS GIRT PL 5x5x1/4 STL WIDE FLANGE GIRT 2" 2" 2" 1/4 1/4
