An elevator guiderail tube per schedule and hollow structural section HSS14x6x3/8 connects to guiderail supports above using two 3/4-inch diameter ASTM A307 machine bolts placed in vertical long slotted holes within L6x3x3/8 by 0 feet 5 inch long leg vertical angles on each side. Nuts are finger tightened and threads are spoiled per drawing notes. A 3/4 inch plate aligns with the centerline of the guiderail, paired with a wide flange beam per plan. Fillet welds of 1/4 inch and 5/16 inch sizes are specified at plate and member junctions. Location must be verified with the elevator manufacturer.

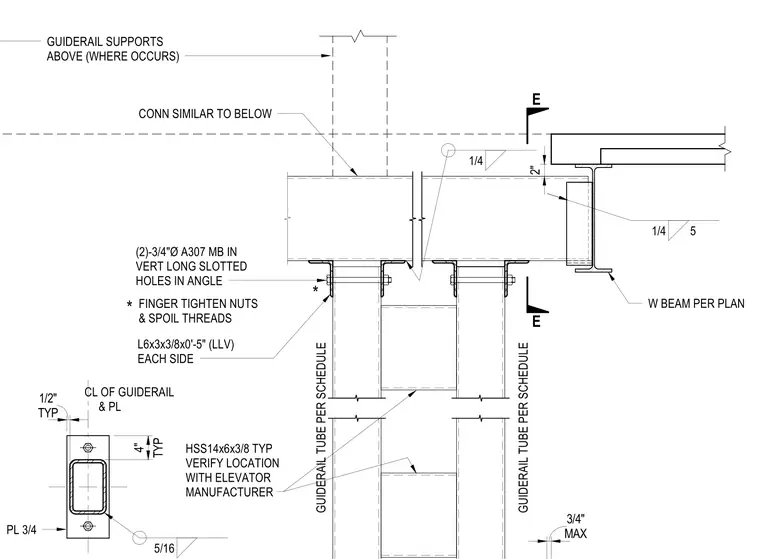

E E * * GUIDERAIL TUBE PER SCHEDULE GUIDERAIL SUPPORTS ABOVE (WHERE OCCURS) (2)-3/4"Ø A307 MB IN VERT LONG SLOTTED HOLES IN ANGLE FINGER TIGHTEN NUTS & SPOIL THREADS L6x3x3/8x0'-5" (LLV) EACH SIDE PL 3/4 CL OF GUIDERAIL & PL W BEAM PER PLAN CONN SIMILAR TO BELOW TYP 1/2" TYP 4" MAX 3/4" 5/16 1/4 1/4 5 GUIDERAIL TUBE PER SCHEDULE HSS14x6x3/8 TYP VERIFY LOCATION WITH ELEVATOR MANUFACTURER 2" E E * * GUIDERAIL TUBE PER SCHEDULE GUIDERAIL SUPPORTS ABOVE (WHERE OCCURS) (2)-3/4"Ø A307 MB IN VERT LONG SLOTTED HOLES IN ANGLE FINGER TIGHTEN NUTS & SPOIL THREADS L6x3x3/8x0'-5" (LLV) EACH SIDE PL 3/4 CL OF GUIDERAIL & PL W BEAM PER PLAN CONN SIMILAR TO BELOW TYP 1/2" TYP 4" MAX 3/4" 5/16 1/4 1/4 5 GUIDERAIL TUBE PER SCHEDULE HSS14x6x3/8 TYP VERIFY LOCATION WITH ELEVATOR MANUFACTURER 2"
