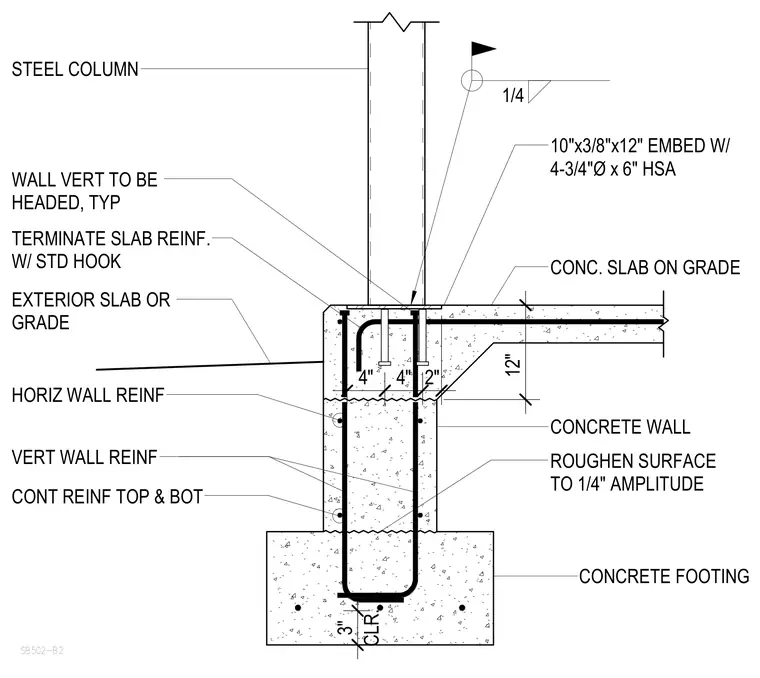

A steel column connects to a concrete wall and footing assembly using a ten by three-eighths by twelve inch embed plate secured by four three-quarter inch diameter by six inch HSA anchor bolts with a one-quarter inch fillet weld. The concrete wall features vertical and horizontal reinforcing with continuous top and bottom reinforcing bars, anchored to a concrete footing with three inches of clearance. The concrete slab on grade terminates with standard hooks at the exterior wall junction where the surface is roughened to one-quarter inch amplitude.
SB502-B2 CONCRETE WALL HORIZ WALL REINF CONCRETE FOOTING ROUGHEN SURFACE TO 1/4" AMPLITUDE VERT WALL REINF CONT REINF TOP & BOT CONC. SLAB ON GRADE EXTERIOR SLAB OR GRADE STEEL COLUMN 12" TERMINATE SLAB REINF. W/ STD HOOK WALL VERT TO BE HEADED, TYP CLR. 3" 10"x3/8"x12" EMBED W/ 4-3/4"Ø x 6" HSA 1/4 4" 4" 2"
