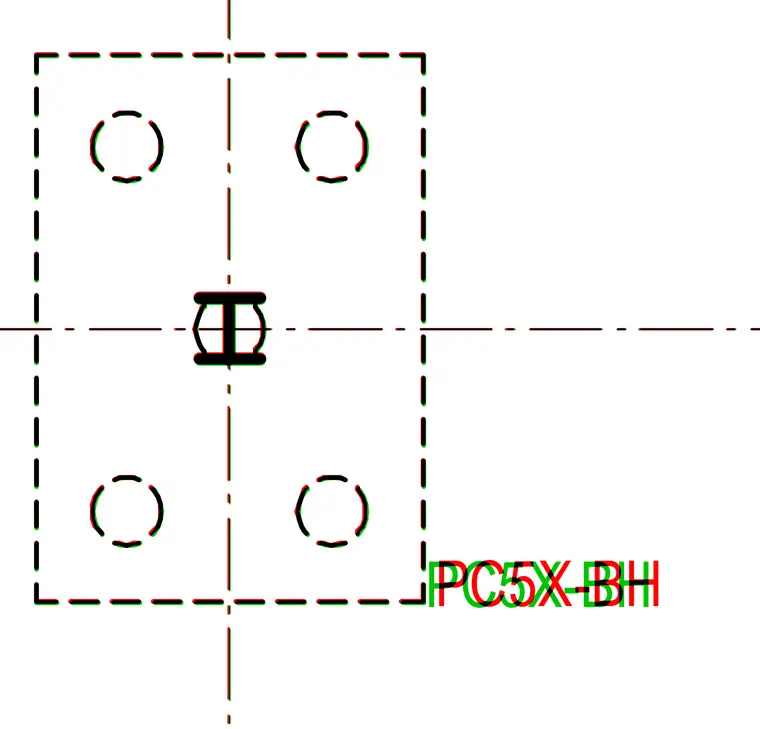

A precast concrete panel connection featuring a rectangular plate with four anchor holes aligned at the corners and a central structural steel member profile intersected by centerlines. The layout establishes precise positioning for structural anchoring and alignment in precast concrete construction. The detail is designated as PC5X-BH.
