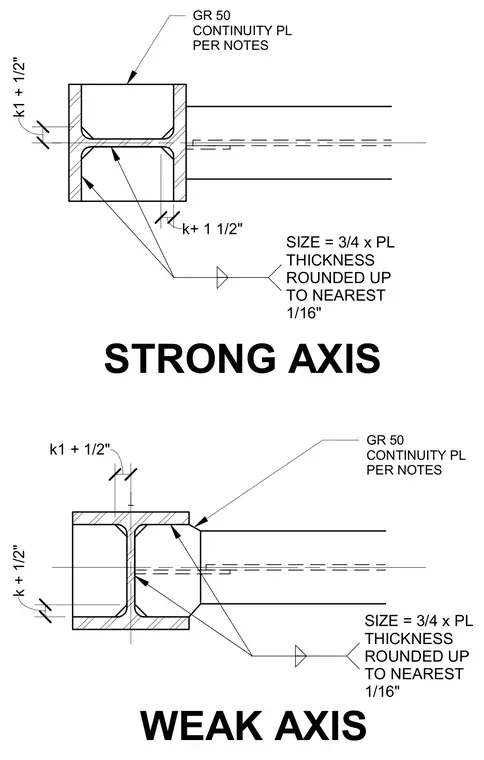

Grade 50 continuity plates are positioned between the flanges of a steel column and sized according to the specified formula of three-quarters of the plate thickness rounded up to the nearest one-sixteenth of an inch. Specific dimensioning guidelines indicate offsets of k1 plus one-half inch and k plus one and one-half inches relative to the column geometry. Fillet welds secure the plates to the column web and flanges in both strong and weak axis configurations.
k1 + 1/2" k+ 1 1/2" SIZE = 3/4 x PL THICKNESS ROUNDED UP TO NEAREST 1/16" GR 50 CONTINUITY PL PER NOTES STRONG AXIS SIZE = 3/4 x PL THICKNESS ROUNDED UP TO NEAREST 1/16" GR 50 CONTINUITY PL PER NOTES WEAK AXIS k1 + 1/2" k + 1/2"
