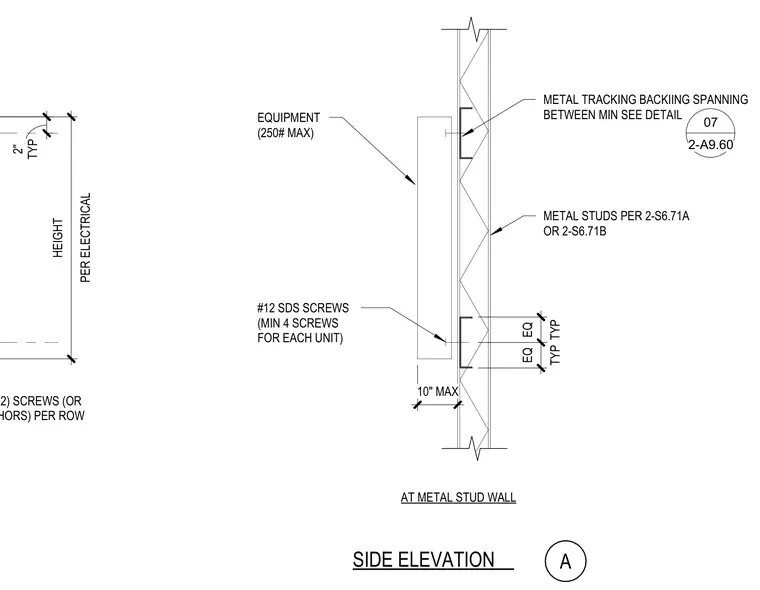

Equipment with a maximum weight of 250 pounds mounts to metal tracking backing spanning between cold-formed metal studs. The unit secures using a minimum of four number 12 self-drilling screws. A minimum of two screws or anchors per row connects the mounting. Metal studs are installed according to structural specifications.
MIN (2) SCREWS (OR ANCHORS) PER ROW METAL TRACKING BACKIING SPANNING BETWEEN MIN SEE DETAIL EQUIPMENT (250# MAX) #12 SDS SCREWS (MIN 4 SCREWS FOR EACH UNIT) METAL STUDS PER 2-S6.71A OR 2-S6.71B SIDE ELEVATION AT METAL STUD WALL PER ELECTRICAL HEIGHT A TYP 2" TYP EQ TYP EQ 07 2-A9.60 10" MAX
