Structural · S-D6DN2

Steel Beam and Joist Bearing Plates at Masonry Wall

Materials

Elements

Beams Walls Floors / Slabs Connections / Plates

About this detail

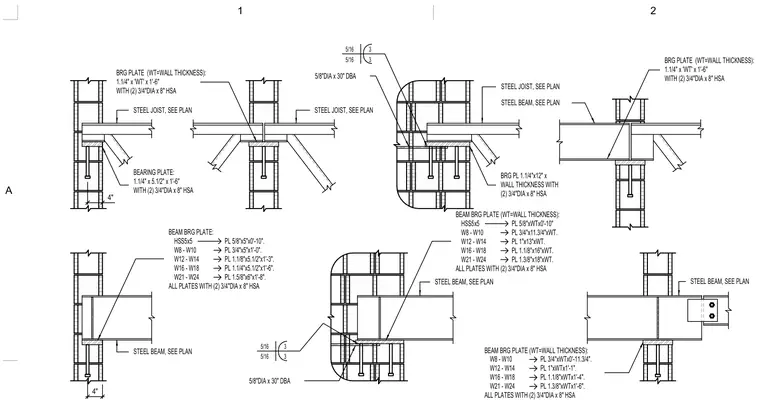

Steel beams and steel joists bear on masonry walls using steel bearing plates sized according to the supporting member and wall thickness. Plates are secured with two three-quarter-inch diameter by eight-inch high-strength anchors or five-eighth-inch diameter by thirty-inch deformed bar anchors. Connection details are provided for various beam sizes ranging from W8 to W24 and HSS5x5 columns. Fillet welds of five-sixteenth-inch size connect the structural steel elements as specified.
