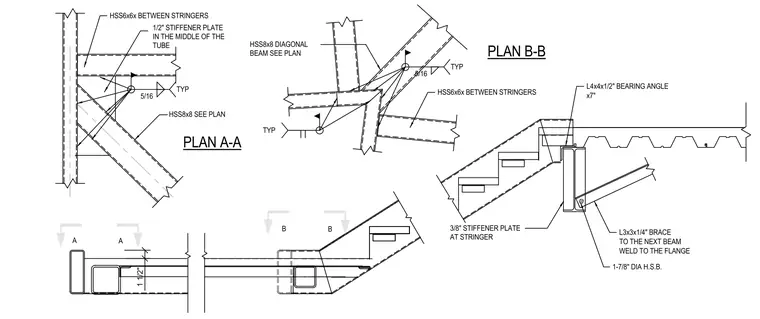

An HSS6x6x tube member spans between stair stringers with a one-half-inch stiffener plate located in the middle of the tube. An HSS8x8 diagonal beam connects to the assembly with five-sixteenths typical fillet welds. A three-eighths-inch stiffener plate is provided at the stringer, supported by an L4x4x1/2-inch bearing angle. An L3x3x1/4-inch brace extends to the next beam and is welded to the flange, utilizing one-and-seven-eighths-inch diameter high-strength bolts.
1 1/2" B B A A 5/16 TYP TYP 5/16 TYP PLAN A-A PLAN B-B 1/2" STIFFENER PLATE IN THE MIDDLE OF THE TUBE HSS6x6x BETWEEN STRINGERS 3/8" STIFFENER PLATE AT STRINGER L3x3x1/4" BRACE TO THE NEXT BEAM WELD TO THE FLANGE 1-7/8" DIA H.S.B. L4x4x1/2" BEARING ANGLE x7" HSS8x8 SEE PLAN HSS6x6x BETWEEN STRINGERS HSS8x8 DIAGONAL BEAM SEE PLAN
