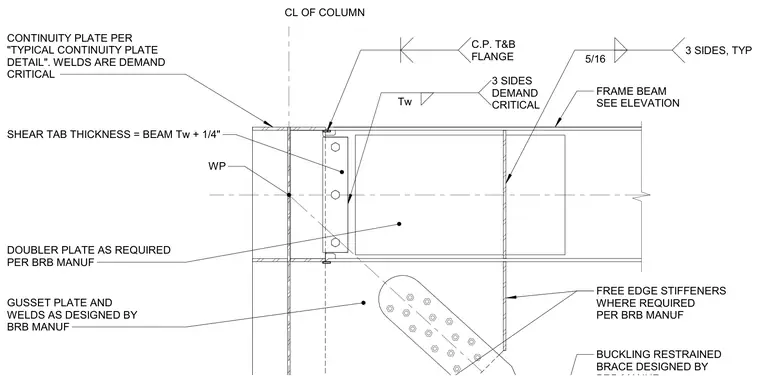

A structural steel buckling-restrained brace connects to a frame beam and column with a gusset plate and welded shear tab. A doubler plate is added to the column web as required by the brace manufacturer, alongside top and bottom continuity plates with demand-critical welds. The shear tab thickness equals the beam web thickness plus one-quarter inch. Free edge stiffeners are installed on the gusset plate where required per the manufacturer design. All designated welds are specified as demand critical.
CONTINUITY PLATE PER "TYPICAL CONTINUITY PLATE DETAIL". WELDS ARE DEMAND CRITICAL WP DOUBLER PLATE AS REQUIRED PER BRB MANUF GUSSET PLATE AND WELDS AS DESIGNED BY BRB MANUF FREE EDGE STIFFENERS WHERE REQUIRED PER BRB MANUF BUCKLING RESTRAINED BRACE DESIGNED BY FRAME BEAM SEE ELEVATION SHEAR TAB THICKNESS = BEAM Tw + 1/4" CL OF COLUMN C.P. T&B FLANGE 5/16 3 SIDES, TYP Tw 3 SIDES DEMAND CRITICAL
