Architectural · S-D645P

Accessible Restroom Sign

Materials

About this detail

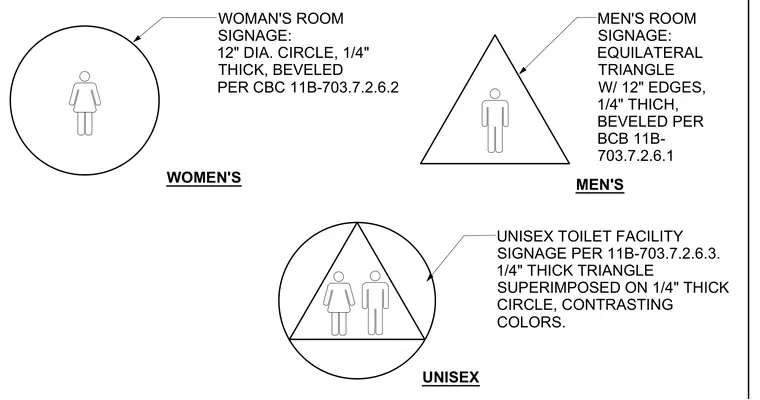

The women's room sign consists of a twelve-inch diameter circle that is one-quarter inch thick with beveled edges per California Building Code 11B-703.7.2.6.2. The men's room sign is an equilateral triangle with twelve-inch edges, one-quarter inch thick with beveled edges per California Building Code 11B-703.7.2.6.1. The unisex toilet facility sign features a one-quarter inch thick triangle superimposed on a one-quarter inch thick circle in contrasting colors per California Building Code 11B-703.7.2.6.3.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
