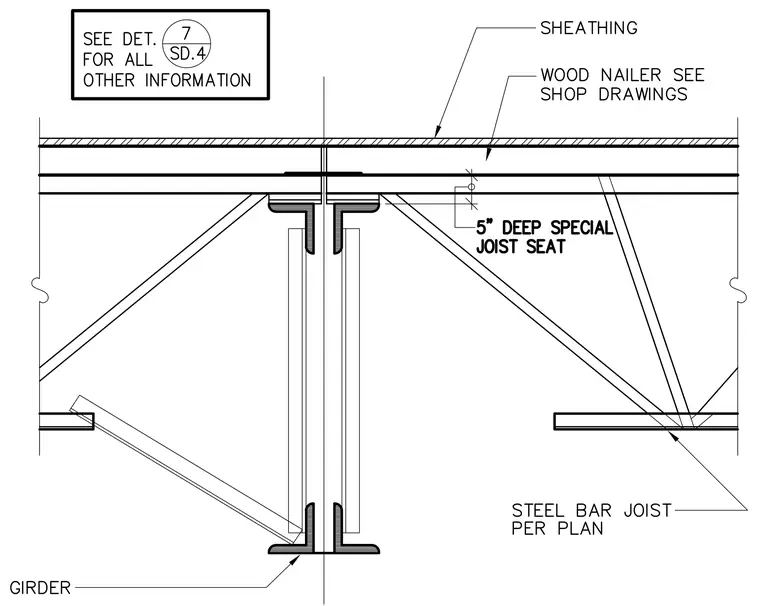

The steel bar joist features a five-inch deep special joist seat bearing directly on the top flange of the supporting steel girder. A wood nailer is attached above the joist seat, topped with structural sheathing. Additional information is referenced via detail 7 on sheet SD.4.
