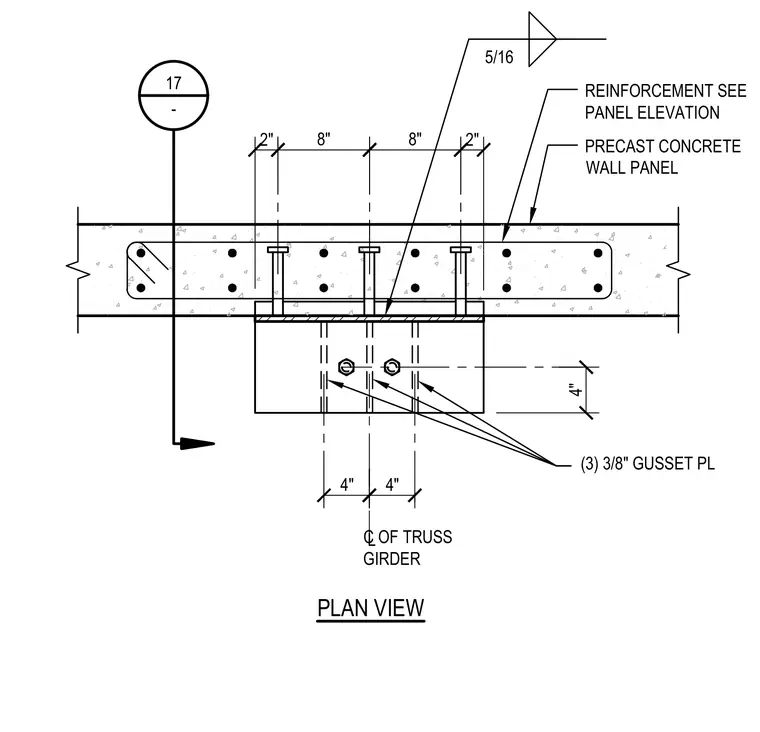

This plan detail shows a truss girder framing into a precast concrete wall panel using three three-eighths-inch gusset plates welded with a five-sixteenths-inch fillet weld. The connection aligns with the centerline of the truss girder, spaced at four-inch and eight-inch dimensions along the embedment. The precast concrete wall panel includes specified internal reinforcing bars detailed on the panel elevation.
2" 2" PLAN VIEW (3) 3/8" GUSSET PL 4" C OF TRUSS GIRDER L 4" 8" 8" 17 - 5/16 PRECAST CONCRETE WALL PANEL REINFORCEMENT SEE PANEL ELEVATION 4"
