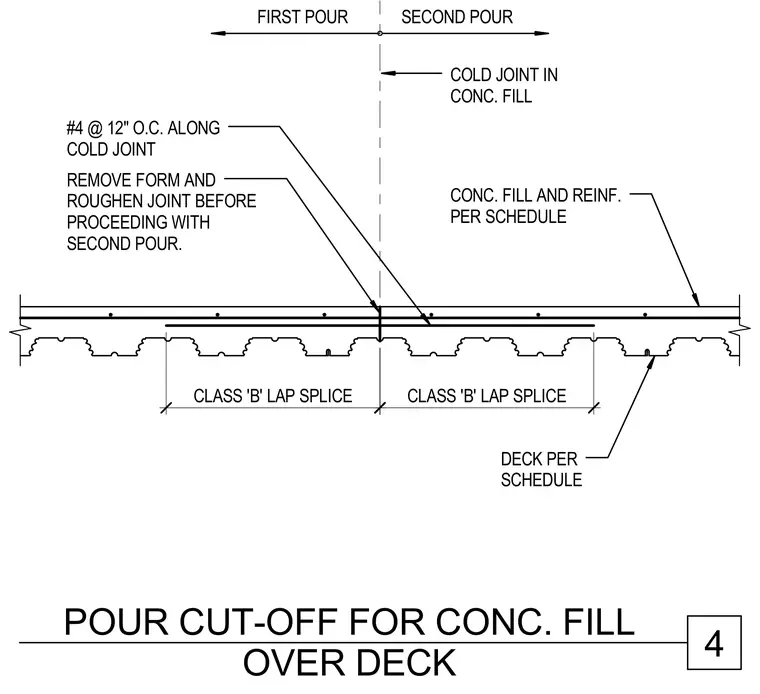

A cold joint is formed in the concrete fill over the metal deck between the first and second pour. The form is removed and the joint surface is roughened before proceeding with the second pour. Number four reinforcing bars are spaced at twelve inches on center along the cold joint. A Class 'B' lap splice is provided for the reinforcement across the joint. The concrete fill and reinforcement are sized per schedule over the specified metal deck.
COLD JOINT IN CONC. FILL SECOND POUR FIRST POUR REMOVE FORM AND ROUGHEN JOINT BEFORE PROCEEDING WITH SECOND POUR. CONC. FILL AND REINF. PER SCHEDULE DECK PER SCHEDULE #4 @ 12" O.C. ALONG COLD JOINT CLASS 'B' LAP SPLICE CLASS 'B' LAP SPLICE POUR CUT-OFF FOR CONC. FILL OVER DECK 4
