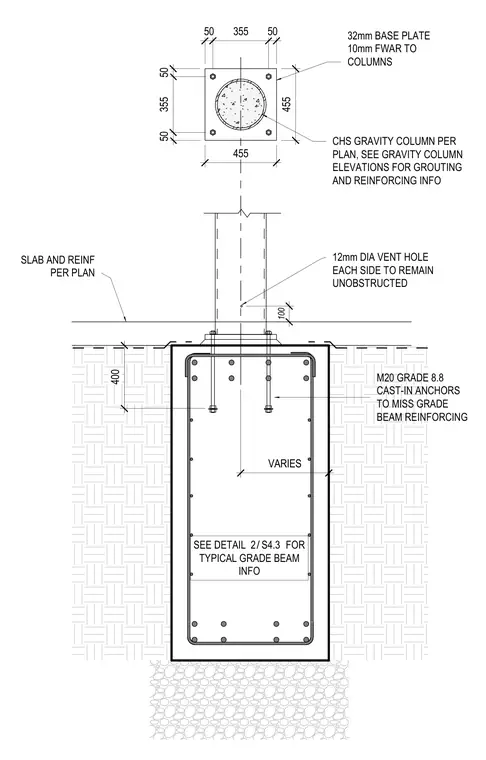

A circular hollow section gravity column connects to a thirty-two millimeter base plate secured by four M20 grade 8.8 cast-in anchor bolts placed to clear the grade beam reinforcing. A ten millimeter fillet weld connects the base plate to the column, which features twelve millimeter diameter vent holes on each side kept unobstructed. The base plate rests above a concrete grade beam with slab and reinforcement detailed per plan.
50 355 50 50 355 50 CHS GRAVITY COLUMN PER PLAN, SEE GRAVITY COLUMN ELEVATIONS FOR GROUTING AND REINFORCING INFO 12mm DIA VENT HOLE EACH SIDE TO REMAIN UNOBSTRUCTED 32mm BASE PLATE 10mm FWAR TO COLUMNS 400 M20 GRADE 8.8 CAST-IN ANCHORS TO MISS GRADE BEAM REINFORCING SLAB AND REINF PER PLAN VARIES 100 SEE DETAIL FOR TYPICAL GRADE BEAM INFO / 2 S4.3 455 455
