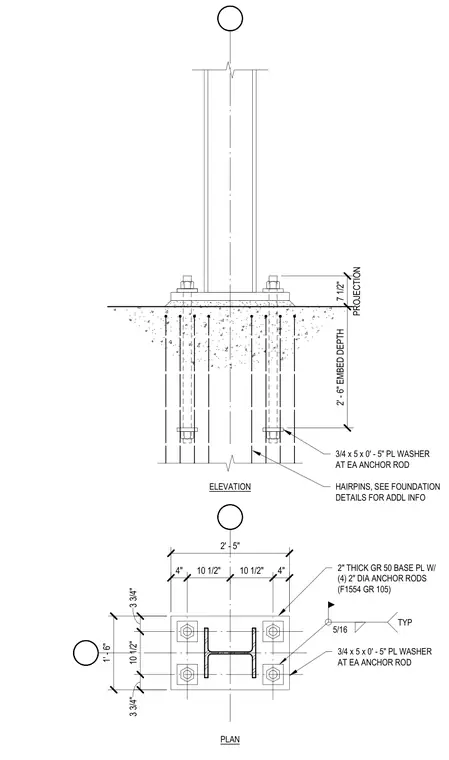

A structural steel vertical brace terminates at a two-inch thick Grade 50 base plate anchored to a concrete foundation. Four two-inch diameter anchor rods conforming to ASTM F1554 Grade 105 secure the base plate, extending to a two-foot six-inch embedment depth with a seven and a half inch projection. Three-quarter by five by zero-foot five-inch plate washers are provided at each anchor rod. Hairpins are installed at the embedded anchor rods, with additional information referenced in foundation details. Five-sixteenths inch fillet welds connect the structural members typical.
1' - 6" 2' - 5" 4" 10 1/2" 10 1/2" 4" 3 3/4" 10 1/2" 3 3/4" PLAN ELEVATION 2" THICK GR 50 BASE PL W/ (4) 2" DIA ANCHOR RODS (F1554 GR 105) 3/4 x 5 x 0' - 5" PL WASHER AT EA ANCHOR ROD 5/16 TYP 3/4 x 5 x 0' - 5" PL WASHER AT EA ANCHOR ROD 2' - 6" EMBED DEPTH PROJECTION 7 1/2" HAIRPINS, SEE FOUNDATION DETAILS FOR ADDL INFO
