A Unistrut brace connects to structural framing using a Unistrut P1354AW adjustable hinge secured by three-eighth-inch diameter ASTM A307 bolts. A maximum five-inch spacing limit governs the geometry of the connection. Fillet welds of one-eighth-inch size join the hinge assembly to the supporting steel.

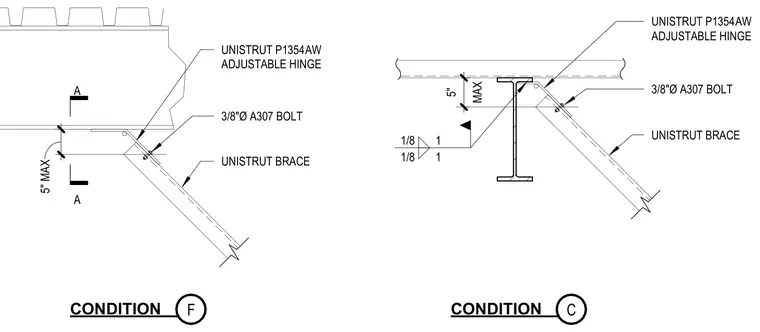

UNISTRUT BRACE 3/8"Ø A307 BOLT CONDITION UNISTRUT P1354AW ADJUSTABLE HINGE CONDITION UNISTRUT BRACE 3/8"Ø A307 BOLT UNISTRUT P1354AW ADJUSTABLE HINGE A A 5" MAX MAX 5" 1/8 1 1/8 1 F C
