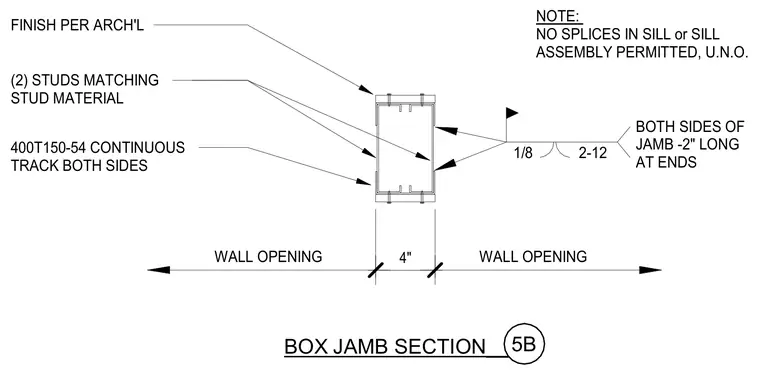

This structural detail shows a four-inch box jamb assembly composed of two studs matching the adjacent stud material flanked by continuous tracks on both sides. A one-eighth-inch fillet weld is specified along both sides of the jamb, intermittent at two inches long at the ends. Finish is applied per architectural drawings. A note specifies that no splices are permitted in the sill or sill assembly unless otherwise noted.
4" BOX JAMB SECTION__ 5B FINISH PER ARCH'L (2) STUDS MATCHING STUD MATERIAL 400T150-54 CONTINUOUS TRACK BOTH SIDES WALL OPENING BOTH SIDES OF JAMB -2" LONG AT ENDS 1/8 2-12 WALL OPENING NOTE: NO SPLICES IN SILL or SILL ASSEMBLY PERMITTED, U.N.O.
