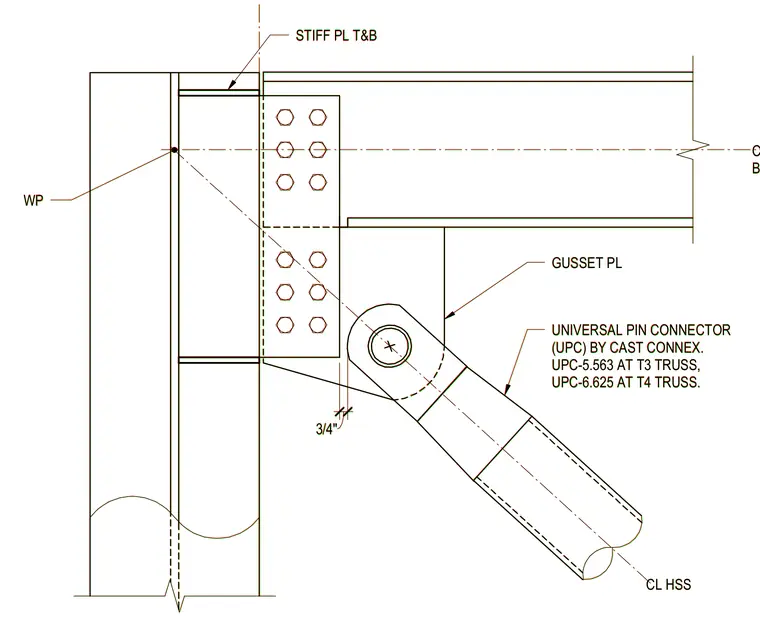

A hollow structural section beam frames into a vertical member using a gusset plate connection reinforced with top and bottom stiffener plates. A Cast Connex universal pin connector secures the diagonal hollow structural section truss member to the gusset plate. Specified models include UPC-5.563 at T3 truss and UPC-6.625 at T4 truss with a three-quarter-inch clearance gap.
WP STIFF PL T&B CL HSS CL BM GUSSET PL UNIVERSAL PIN CONNECTOR (UPC) BY CAST CONNEX. UPC-5.563 AT T3 TRUSS, UPC-6.625 AT T4 TRUSS. 3/4" WP STIFF PL T&B CL HSS CL BM GUSSET PL UNIVERSAL PIN CONNECTOR (UPC) BY CAST CONNEX. UPC-5.563 AT T3 TRUSS, UPC-6.625 AT T4 TRUSS. 3/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
