A metal stud framed wall bears on a concrete floor with a minimum thickness of four and one-half inches. A steel floor runner with one and one-quarter inch flanges connects to the concrete slab using zero point one five seven inch powder actuated fasteners spaced at twelve inches on center. A fire rated sealant designated as sealant B4-1 fills the joint up to a maximum three-quarter inch gap.

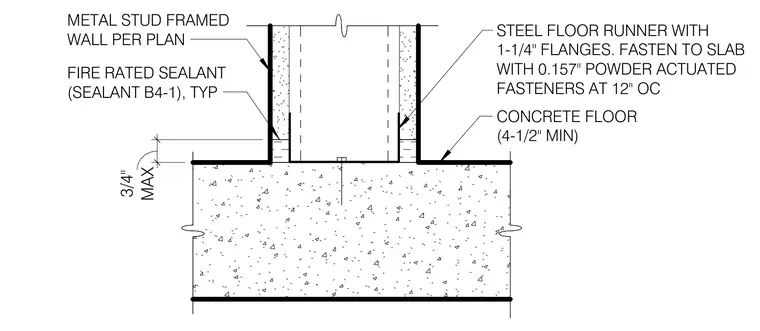

CONCRETE FLOOR (4-1/2" MIN) METAL STUD FRAMED WALL PER PLAN STEEL FLOOR RUNNER WITH 1-1/4" FLANGES. FASTEN TO SLAB WITH 0.157" POWDER ACTUATED FASTENERS AT 12" OC FIRE RATED SEALANT (SEALANT B4-1), TYP MAX 3/4"
