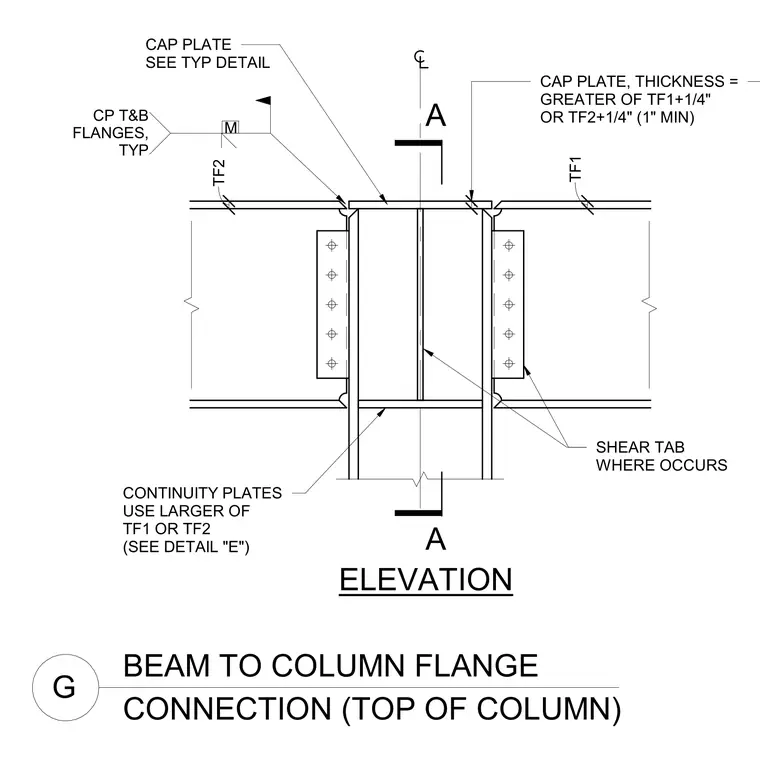

A beam-to-column flange connection occurs at the top of a column. Steel beams connect to the column flanges using shear tabs where indicated. A cap plate is welded to the top and bottom flanges with a thickness determined by the greater of the connected flange thicknesses plus one-quarter inch, with a one-inch minimum. Internal continuity plates are installed inside the column, sized using the larger of the intersecting flange thicknesses.
A A BEAM TO COLUMN FLANGE G CONNECTION (TOP OF COLUMN) ELEVATION CONTINUITY PLATES USE LARGER OF TF1 OR TF2 (SEE DETAIL "E") CAP PLATE, THICKNESS = GREATER OF TF1+1/4" OR TF2+1/4" (1" MIN) TF2 TF1 . CP T&B FLANGES, TYP M CAP PLATE SEE TYP DETAIL SHEAR TAB WHERE OCCURS
