S-D4FSZ — Diagonal Bracing Connection at Steel Column and Beam

Structural · S-D4FSZ

Diagonal Bracing Connection at Steel Column and Beam

Materials

Elements

Columns Beams Bracing

Connections

Bracing Connection

About this detail

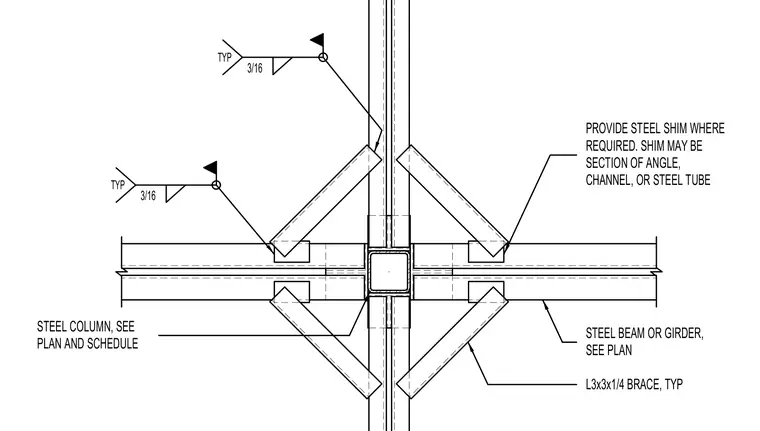

Diagonal angle braces of size L3x3x1/4 are connected to a structural steel column and a steel beam or girder. Steel shims made from sections of angle, channel, or steel tube are provided where required. Connections are secured with three-sixteenth-inch typical fillet welds.

TYP 3/16 TYP 3/16 STEEL BEAM OR GIRDER, SEE PLAN L3x3x1/4 BRACE, TYP STEEL COLUMN, SEE PLAN AND SCHEDULE PROVIDE STEEL SHIM WHERE REQUIRED. SHIM MAY BE SECTION OF ANGLE, CHANNEL, OR STEEL TUBE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
