Cold-formed steel framing connections include header and bracing conditions at jamb studs. A two-inch by two-inch by sixteen-gauge clip angle is attached using four number eight screws where bracing terminates at built-up jambs or posts. A track section matches the jamb stud gauge and is attached to the jamb with six number ten screws and to the header with three number ten screws on each flange. Cripple studs and header studs are secured using number eight screws spaced at sixteen inches on center. Powder-actuated fasteners replace standard screws when connecting to structural steel jambs.

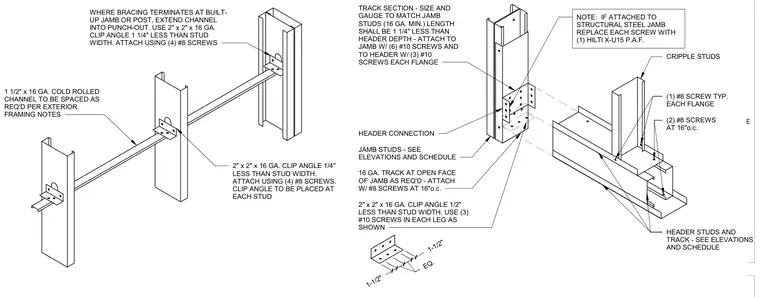

WHERE BRACING TERMINATES AT BUILT- UP JAMB OR POST, EXTEND CHANNEL INTO PUNCH-OUT. USE 2" x 2" x 16 GA. CLIP ANGLE 1 1/4" LESS THAN STUD WIDTH. ATTACH USING (4) #8 SCREWS 1 1/2" x 16 GA. COLD ROLLED CHANNEL TO BE SPACED AS REQ'D PER EXTERIOR FRAMING NOTES 2" x 2" x 16 GA. CLIP ANGLE 1/4" LESS THAN STUD WIDTH. ATTACH USING (4) #8 SCREWS. CLIP ANGLE TO BE PLACED AT EACH STUD CRIPPLE STUDS (1) #8 SCREW TYP. EACH FLANGE (2) #8 SCREWS AT 16"o.c. HEADER CONNECTION JAMB STUDS - SEE ELEVATIONS AND SCHEDULE 16 GA. TRACK AT OPEN FACE OF JAMB AS REQ'D - ATTACH W/ #8 SCREWS AT 16"o.c. HEADER STUDS AND TRACK - SEE ELEVATIONS AND SCHEDULE 2" x 2" x 16 GA. CLIP ANGLE 1/2" LESS THAN STUD WIDTH. USE (3) #10 SCREWS IN EACH LEG AS SHOWN TRACK SECTION - SIZE AND GAUGE TO MATCH JAMB STUDS (16 GA. MIN.) LENGTH SHALL BE 1 1/4" LESS THAN HEADER DEPTH - ATTACH TO JAMB W/ (6) #10 SCREWS AND TO HEADER W/ (3) #10 SCREWS EACH FLANGE NOTE: IF ATTACHED TO STRUCTURAL STEEL JAMB REPLACE EACH SCREW WITH (1) HILTI X-U15 P.A.F. 1-1/2" EQ. 1-1/2" E
