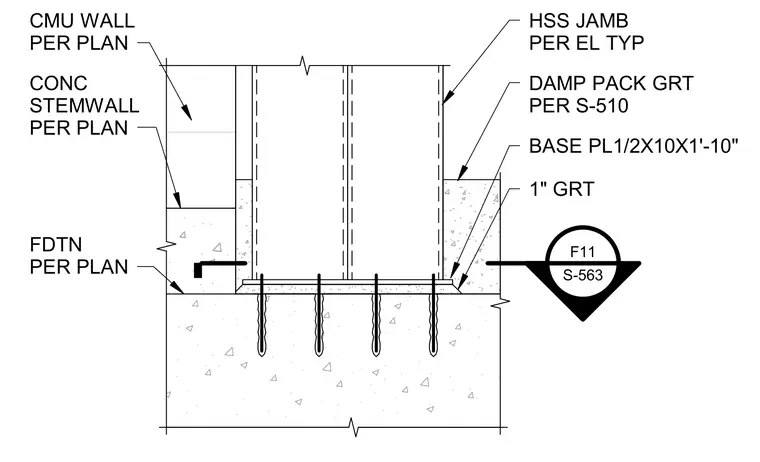

A hollow structural section jamb connects to a foundation via a 1/2-inch by 10-inch by 1-foot-10-inch base plate secured with anchor bolts. A 1-inch grout layer sits beneath the base plate over the concrete stem wall and foundation. Damp-pack grout is applied per specification S-510 around the base assembly adjacent to the CMU wall sized per plan.
F11 S-563 DAMP PACK GRT PER S-510 CMU WALL PER PLAN HSS JAMB PER EL TYP CONC STEMWALL PER PLAN BASE PL1/2X10X1'-10" FDTN PER PLAN 1" GRT
