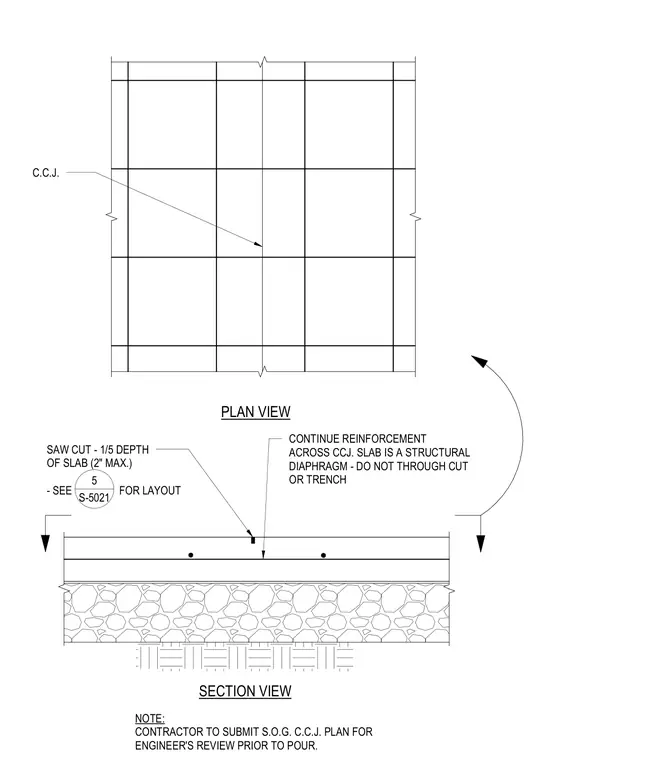

A typical crack control joint in a structural slab on grade features a top saw cut extending to one-fifth the depth of the slab with a two-inch maximum. Reinforcing steel continues uninterrupted across the control joint since the slab functions as a structural diaphragm. The assembly prohibits through-cutting or trenching across the control joint. The contractor must submit a slab on grade crack control joint plan for engineer review prior to pouring concrete.
SAW CUT - 1/5 DEPTH OF SLAB (2" MAX.) - SEE FOR LAYOUT CONTINUE REINFORCEMENT ACROSS CCJ. SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH C.C.J. SECTION VIEW PLAN VIEW NOTE: CONTRACTOR TO SUBMIT S.O.G. C.C.J. PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. 5 S-5021
