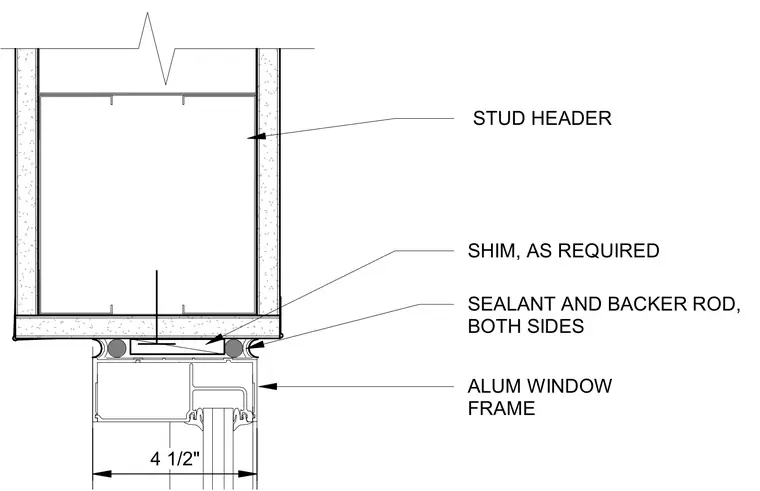

An aluminum window frame is installed beneath a stud header with a 4 1/2 inch dimension span. Shims are placed as required between the header and frame for proper alignment. Sealant and backer rod are applied on both sides of the joint to weatherproof the assembly.
ALUM WINDOW FRAME STUD HEADER 4 1/2" SHIM, AS REQUIRED SEALANT AND BACKER ROD, BOTH SIDES
