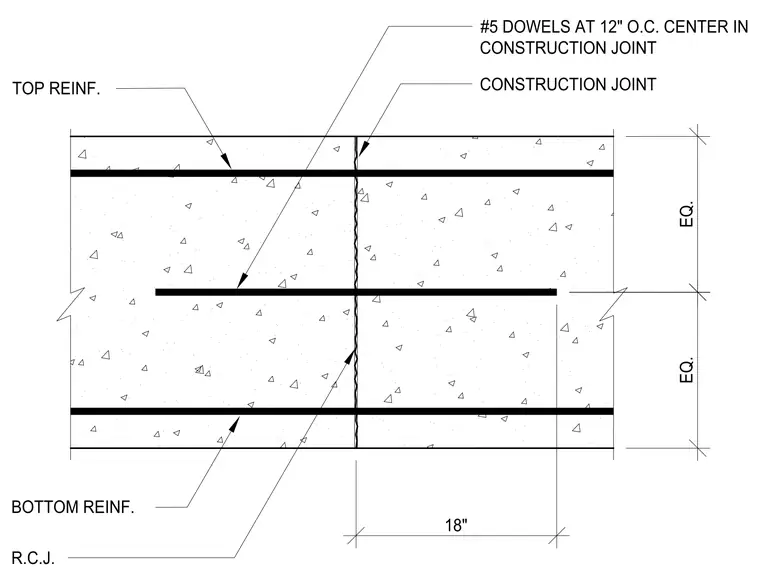

This construction joint in a reinforced concrete slab utilizes number five reinforcing bar dowels spaced at twelve inches on center. The dowels are positioned at the mid-depth of the slab, centered across the vertical construction joint. Top and bottom reinforcing mats are maintained on both sides of the joint. The joint is identified as a reinforced construction joint.
