Structural · S-D3TRK

Grade Beam Reinforcement and Column Base Section

Materials

Elements

Columns Beams Foundations / Footings Reinforcing

About this detail

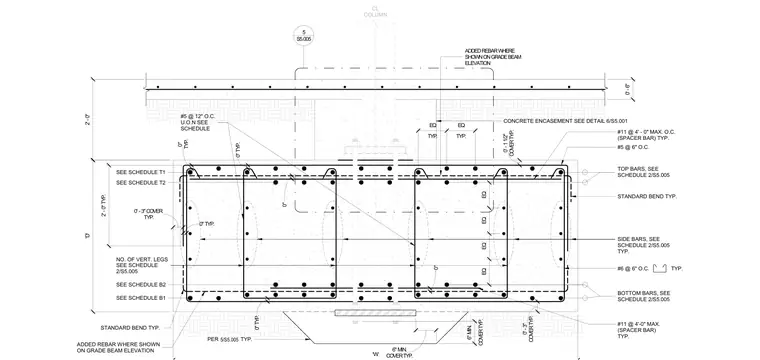

This structural detail shows a reinforced concrete grade beam with a column base connection at the center line. The assembly incorporates top bars, bottom bars, and side bars sized per schedule, tied with #5 stirrups at 12 inches on center and #6 bars at 6 inches on center. Additional #11 spacer bars are placed at a maximum of 4 feet on center. Concrete cover is maintained at 3 inches typical, with specific anchor and base plate configurations for the column above and a concrete encasement below.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
