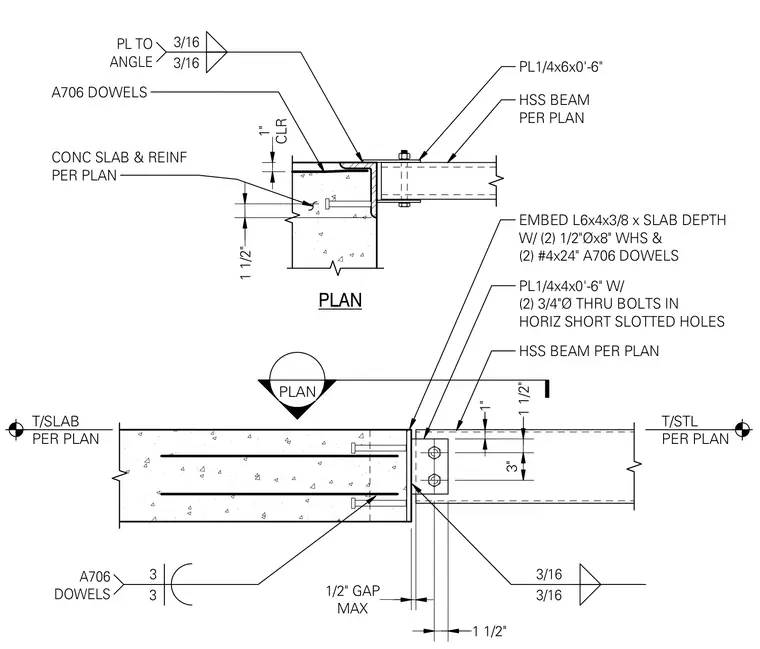

An embed angle measuring L6x4x3/8 by slab depth is cast into the concrete slab with two 1/2-inch diameter by 8-inch headed stud anchors and two number 4 by 24-inch A706 dowels. A 1/4 by 6 by 0'-6-inch plate welded to the angle connects to the hollow structural section beam using a 1/4 by 4 by 0'-6-inch plate secured with two 3/4-inch diameter through-bolts in horizontal short slotted holes. A maximum 1/2-inch gap is maintained between the steel beam and the concrete edge with a 3/16-inch fillet weld connecting the plate to the angle.
3/16 3/16 EMBED L6x4x3/8 x SLAB DEPTH W/ (2) 1/2"Øx8" WHS & (2) #4x24" A706 DOWELS PL1/4x4x0'-6" W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES HSS BEAM PER PLAN MAX 1/2" GAP 1" 1 1/2" 3" 3/16 3/16 PL TO ANGLE 1 1/2" PL1/4x6x0'-6" HSS BEAM PER PLAN CONC SLAB & REINF PER PLAN PLAN PLAN 3 3 A706 DOWELS A706 DOWELS 1 1/2" CLR 1" T/SLAB PER PLAN T/STL PER PLAN
