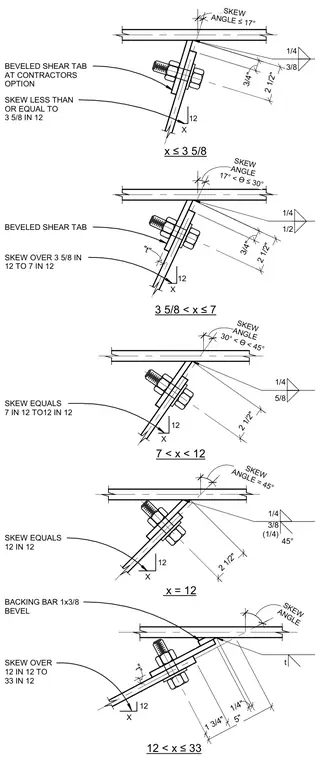

This structural drawing details beveled shear tab connections for skewed beam framing conditions across five specific skew angle ranges from less than or equal to three and five-eighths inches in twelve up to thirty-three inches in twelve. The connection utilizes a single plate welded to the supporting member with specified fillet weld sizes ranging from one-quarter inch to five-eighths inch, alongside a backing bar for steeper skews. The supported beam web is bolted through the beveled shear tab with standard high-strength bolts, maintaining a two-and-one-half-inch edge distance and varying plate thicknesses denoted by t. Additional callouts indicate options for contractor-selected beveled shear tabs on shallow skews and specific bevel angles matching the geometric offset of the framing.
12 3 5/8 < x ≤7 SKEW OVER 3 5/8 IN 12 TO 7 IN 12 3/4" 2 1/2" "t" 17° < Ɵ ≤ 30° SKEW ANGLE 1/2 1/4 12 12 x = 12 SKEW EQUALS 12 IN 12 SKEW OVER 12 IN 12 TO 33 IN 12 BACKING BAR 1x3/8 BEVEL 12 < x ≤33 SKEW ANGLE = 45° 2 1/2" 3/8 (1/4) 1/4 ANGLE SKEW 5" 1 3/4" 1/4" t "t" BEVELED SHEAR TAB X X X 45° 12 7 < x < 12 SKEW EQUALS 7 IN 12 TO12 IN 12 30° < Ɵ < 45° SKEW ANGLE 5/8 1/4 X 12 x ≤3 5/8 SKEW LESS THAN OR EQUAL TO 3 5/8 IN 12 3/4" 2 1/2" ANGLE ≤ 17° SKEW 3/8 1/4 BEVELED SHEAR TAB AT CONTRACTORS OPTION X 2 1/2"
