Structural · S-D3MSB

Steel Beam to Column Flange and Web Connection Details

Materials

weld

Elements

Columns

Connections

Welded Connection

About this detail

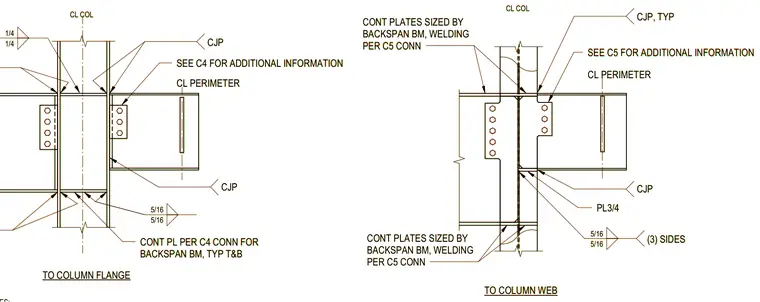

Continuous plates sized by the backspan beam connect to the column flange and web using complete joint penetration welds and fillet welds. Three-sided three-quarter-inch plates connect with five-sixteenth-inch typical top and bottom welds, referencing sheet C4 and C5 for additional connection information and welding requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
