Structural · S-D3F63

Interior Gravity Column Dropped Footing and Pedestal

Materials

Concrete

Elements

Columns Floors / Slabs Foundations / Footings Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

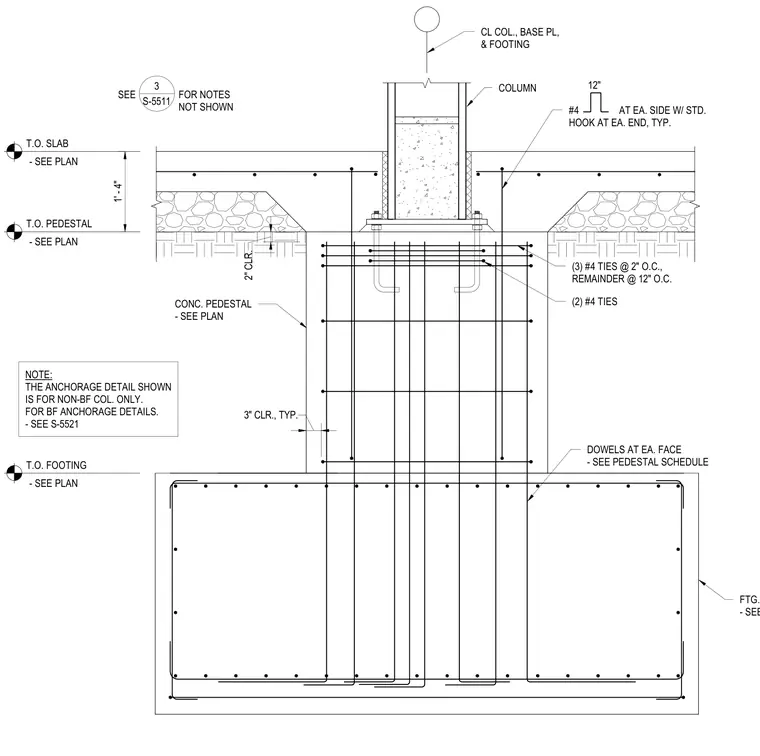

An interior gravity column bases onto a concrete pedestal that connects to a reinforced concrete footing below a slab-on-grade. The concrete pedestal is detailed with three number four ties spaced at two inches on center at the top, with the remainder spaced at twelve inches on center, plus two number four ties and dowels at each face sized per the pedestal schedule. The footing features a three-inch concrete clear cover typically, while the pedestal maintains a two-inch clear cover and features number four bars at each side with standard hooks at each end. A note specifies that this anchorage detail is for non-building-frame columns only, directing users to sheet S-5521 for building-frame anchorage details.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
