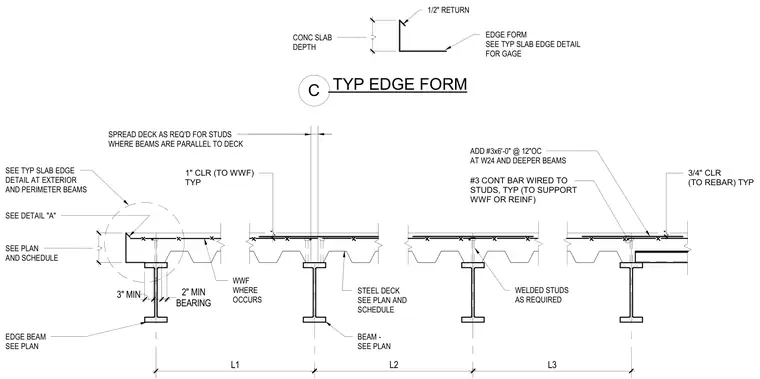

Concrete slab on steel decking runs parallel to supporting steel beams with welded studs and continuous reinforcing bars. A number 3 continuous reinforcing bar is wired to the studs to support welded wire fabric or reinforcement. Additional number 3 bars at six feet zero inches long are spaced at twelve inches on center at wide flange beams of size twenty-four and deeper. The steel deck spreads as required for studs where beams run parallel to the deck. A metal edge form with a one-half inch return is detailed at the perimeter. Clearances include one inch to welded wire fabric and three-quarters of an inch to rebar.
ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS SPREAD DECK AS REQ'D FOR STUDS WHERE BEAMS ARE PARALLEL TO DECK STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) EDGE BEAM SEE PLAN WWF WHERE OCCURS BEAM - SEE PLAN 1" CLR (TO WWF) TYP CONC SLAB DEPTH 1/2" RETURN SEE DETAIL "A" SEE TYP SLAB EDGE DETAIL AT EXTERIOR AND PERIMETER BEAMS TYP EDGE FORM C L1 L2 L3 . 3" MIN BEARING 2" MIN SEE PLAN AND SCHEDULE . 3/4" CLR (TO REBAR) TYP . EDGE FORM SEE TYP SLAB EDGE DETAIL FOR GAGE .
