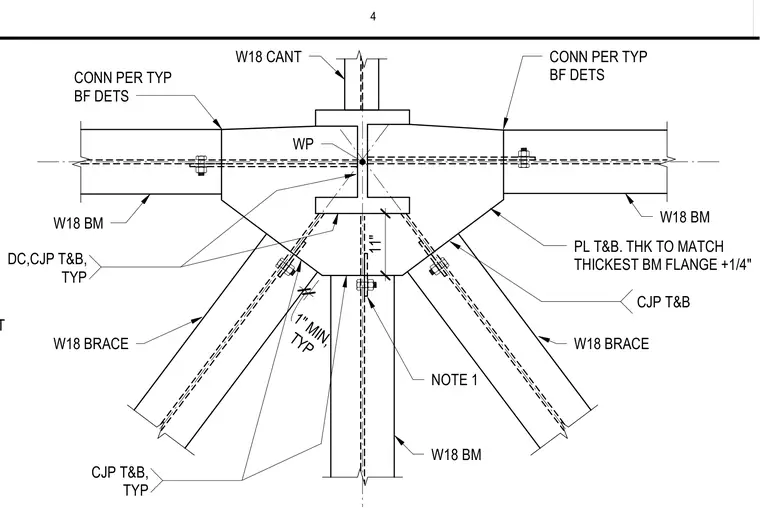

W18 brace members frame into a vertical W18 column and horizontal W18 beams using gusset plates with top and bottom complete joint penetration welds. The gusset plates feature a thickness matching the thickest beam flange plus one-quarter inch. Connections are reinforced with typical moment frame details, maintaining a one-inch minimum clearance typical at brace ends. Work points and alignment lines are clearly dimensioned for structural steel framing coordination.
MATCH THICKEST W18 CANT CONN PER TYP BF DETS PL T&B. THK TO MATCH THICKEST BM FLANGE +1/4" WP W18 BRACE NOTE 1 CJP T&B CJP T&B, TYP CONN PER TYP BF DETS W18 BM W18 BM W18 BRACE DC,CJP T&B, TYP W18 BM TYP 1" MIN, 11" 4
