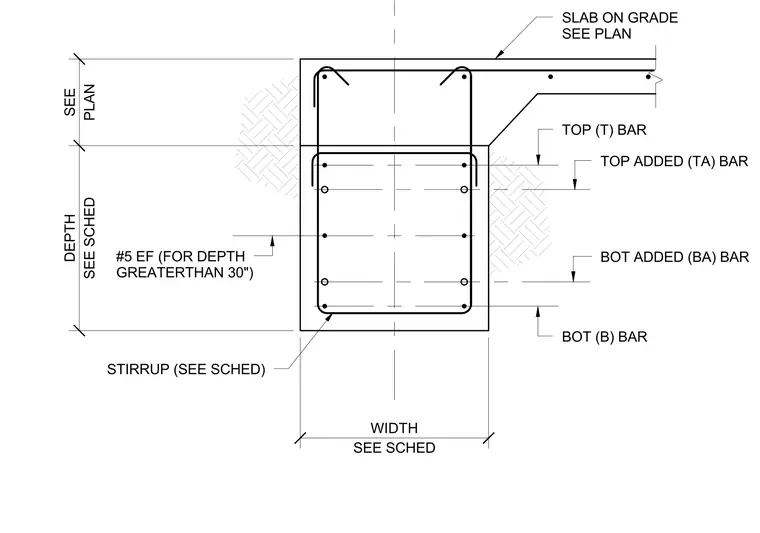

A concrete beam section ties into an adjoining slab on grade with specified width and depth per schedule. Transverse shear reinforcement consists of stirrups sized per schedule with number five bars placed each face for depths greater than thirty inches. Longitudinal reinforcement includes top bars, bottom bars, top added bars, and bottom added bars positioned according to structural drawings.
STIRRUP (SEE SCHED) TOP (T) BAR BOT (B) BAR TOP ADDED (TA) BAR BOT ADDED (BA) BAR #5 EF (FOR DEPTH GREATERTHAN 30") SLAB ON GRADE SEE PLAN SEE SCHED WIDTH SEE SCHED DEPTH PLAN SEE
