Concrete housekeeping pads sit atop the slab-on-grade to provide elevated support for mechanical equipment. These pads are constructed four inches thick as a typical dimension unless otherwise indicated on the structural plans. Typical reinforcing details are referenced on sheet S3.11.

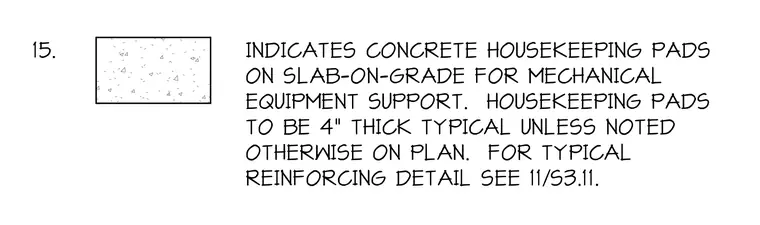

INDICATES CONCRETE HOUSEKEEPING PADS ON SLAB-ON-GRADE FOR MECHANICAL EQUIPMENT SUPPORT. HOUSEKEEPING PADS TO BE 4" THICK TYPICAL UNLESS NOTED OTHERWISE ON PLAN. FOR TYPICAL REINFORCING DETAIL SEE 11/S3.11. 15.
