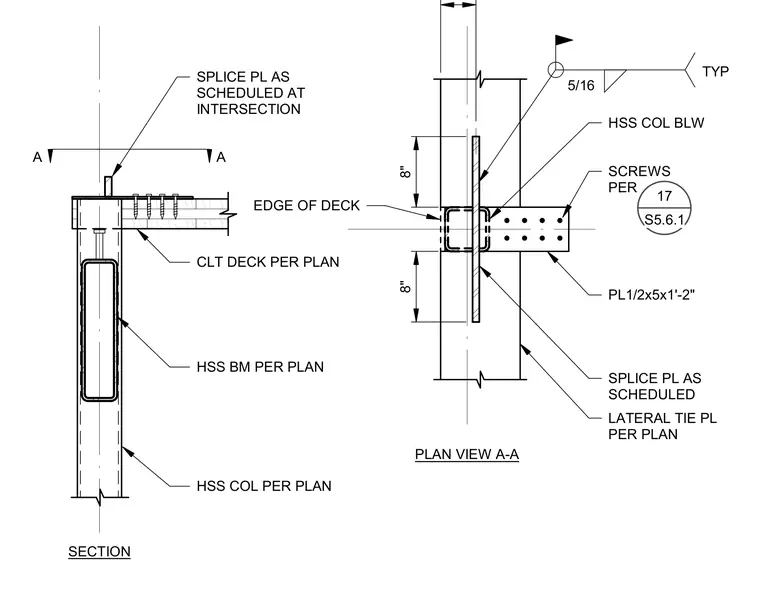

A hollow structural section beam frames into a hollow structural section column supporting a cross-laminated timber deck per plan. A splice plate as scheduled is positioned at the intersection, while a lateral tie plate connects the structural steel members. Five-sixteenth inch fillet welds join the assembly. A half-inch by five-inch by one-foot two-inch steel plate is fastened with screws per plan and sheet S5.6.1.
HSS BM PER PLAN CLT DECK PER PLAN SPLICE PL AS SCHEDULED AT INTERSECTION HSS COL PER PLAN SECTION A A PLAN VIEW A-A 8" 8" 5/16 TYP EDGE OF DECK 4" SCREWS PER PL1/2x5x1'-2" SPLICE PL AS SCHEDULED LATERAL TIE PL PER PLAN HSS COL BLW 17 S5.6.1
