A ten-inch by sixteen-gauge continuous bottom track is secured to a steel beam sized per plan. The track is fastened using zero-point-one-five-seven-inch powder-actuated fasteners spaced at sixteen inches on center. Additional support is provided by secondary clips referenced to detail two on sheet S-five-hundred-thirteen.

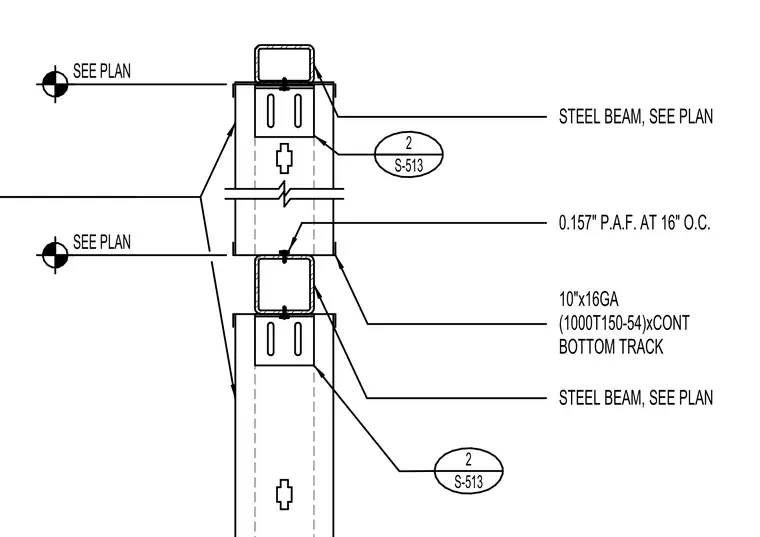

SEE PLAN SEE PLAN 10"x16GA (1000T150-54)xCONT BOTTOM TRACK STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN 0.157" P.A.F. AT 16" O.C. 2 S-513 2 S-513
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
