Typical Concrete Floor and Slab Edge Curbs

Materials

Concrete Reinforced Concrete

Elements

Floors / Slabs Site / Paving Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

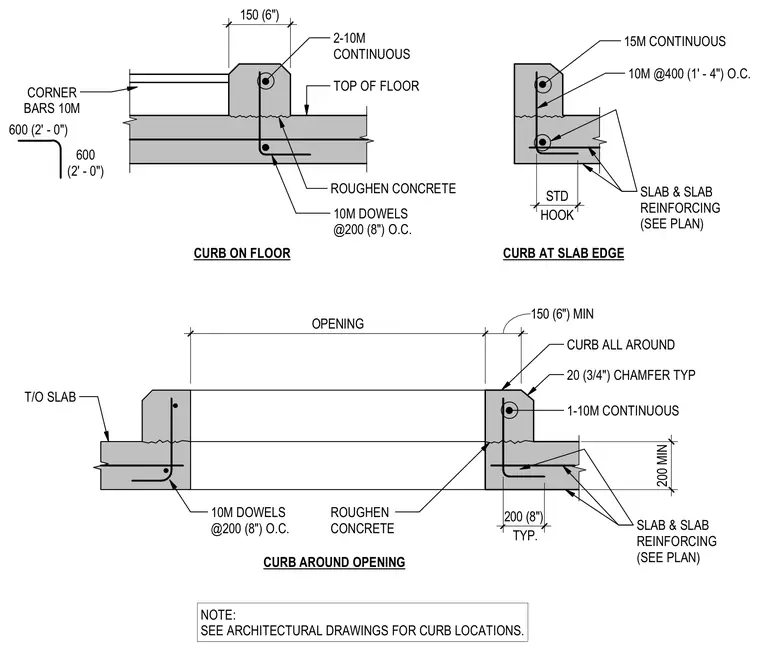

These structural details illustrate concrete curbs formed on top of concrete floor slabs, at slab edges, and around floor openings. The concrete surface is roughened at the joint and tied with 10M dowels spaced at 200 millimetres or 8 inches on center. The curbs feature 150-millimetre or 6-inch minimum widths, standard hooks, and 20-millimetre or 3/4-inch typical chamfers on exterior corners. Reinforcement includes continuous longitudinal bars such as 2-10M, 1-10M, and 15M bars, supplemented by 10M vertical stirrups or ties at 400 millimetres or 1 foot 4 inches on center and 10M corner bars. Slab reinforcing is sized per structural plans, and overall slab thickness maintains a 200-millimetre minimum.
