Conduit Trapeze Mounting

Materials

About this detail

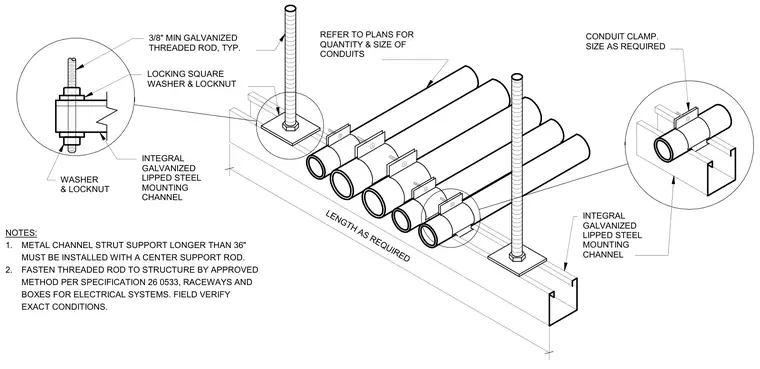

An integral galvanized lipped steel mounting channel spans beneath multiple electrical conduits of size and quantity as required by plans. Conduit clamps sized as required secure each individual conduit to the top flange of the mounting channel. Three-eighths-inch minimum galvanized threaded rods suspend the channel assembly from the overhead structure, secured with a locking square washer, washers, and locknuts at each connection point. Metal channel strut supports longer than thirty-six inches require an installed center support rod. The threaded rods fasten to the building structure using an approved method per specification 26 0533 for raceways and boxes.
