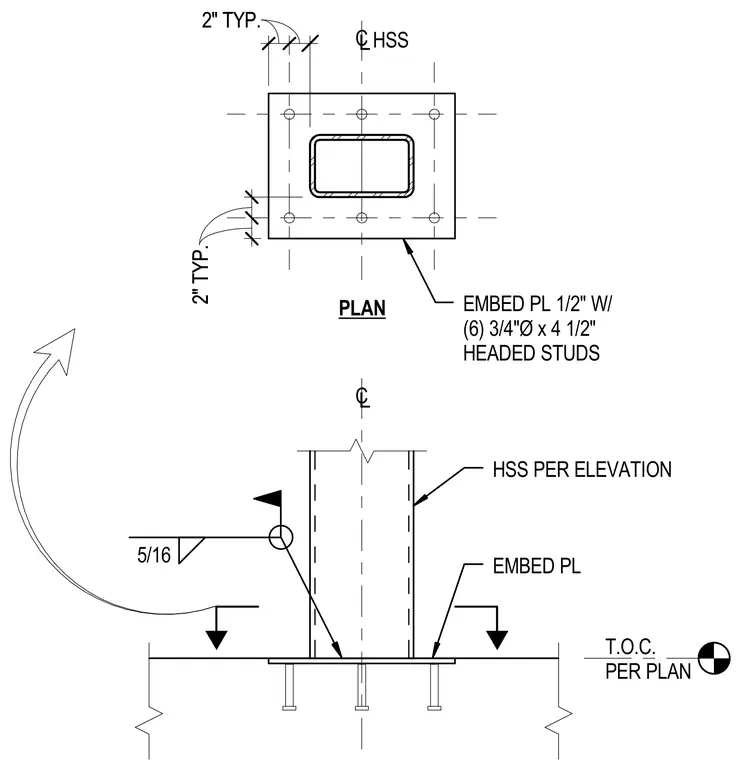

A hollow structural section column connects to a one-half-inch thick embed plate welded with a five-sixteenth-inch fillet weld. The embed plate is anchored using six three-quarter-inch diameter by four-and-a-half-inch long headed studs spaced at two inches typical. Top of concrete is located per plan.
HSS PER ELEVATION EMBED PL 5/16 L C L C PLAN 2" TYP. 2" TYP. HSS EMBED PL 1/2" W/ (6) 3/4"Ø x 4 1/2" HEADED STUDS 2" TYP. 2" TYP. T.O.C. PER PLAN
